LightTube 4.7 x 2.3mm Ribbon Breakout Tubing - PVC / PVDF - Yellow

RB1251YE00

LightTube 4.7x2.3mm Ribbon Breakout Tubing with PVC Outer Jacket and 4.1x1.5mm PVDF Inner Tube for 1 x 12 250μm Fiber - Yellow

Price per Meter / $49.00 Cut Charge for Lengths < 1524 Meters

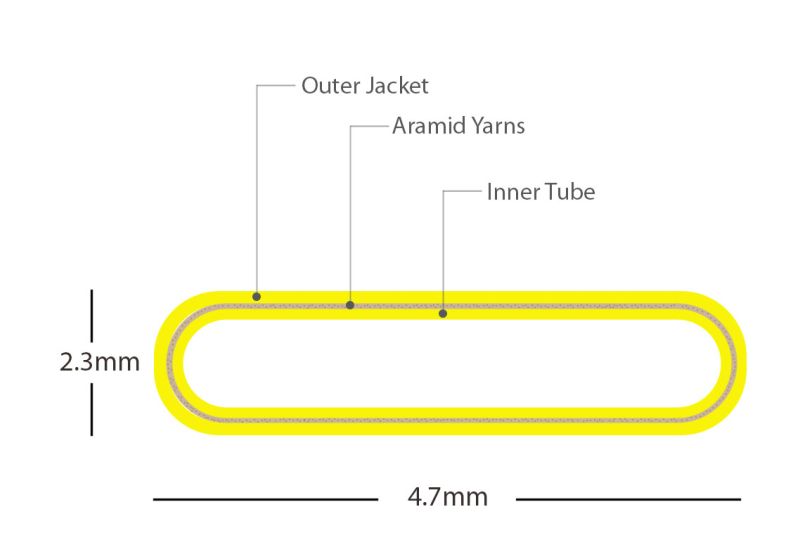

Opticonx LightTube RB1251XX00 Ribbon Breakout Tubing used for 12 fiber ribbons of 250μm buffered fibers is available in 12 different colors. This tubing is used for breaking out bare 12 fiber ribbons to color-coded tubing for terminating with MTP/MPO 12 fiber connectors. The tubing is constructed with an inner tube for the inserted fibers, a layer of aramid yarn for strain relief and connector crimping, and an overall color-coded PVC jacket.

Features:

Smooth Fiber Insertion
Low Shrinkage
ROHS, REACH and ITAR-compliant

Characteristics:

Inner Tube Material OD x ID mm: 4.1mm x 1.5mm PVDF Inner Tube
Jacket Material OD mm: PVC 4.7mm x 2.3mm
Tubing/Outer Jacket Color: Yellow
Operating Temperature: -20°C to +75°C
Shrinkage @ 85°C: <2%
Min Bend Radius: 9.0cm Installation
