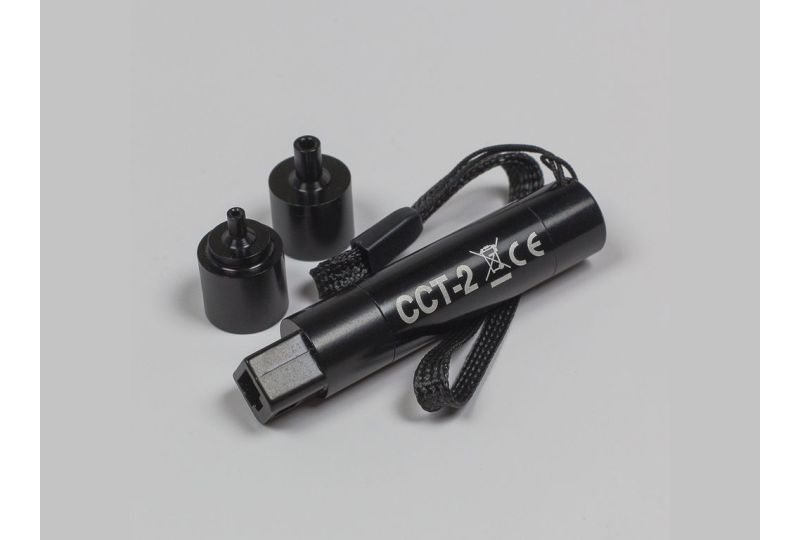

Miller Continuity Tester
CCT-2
Miller Continuity Tester with 1.25mm, 2.5mm and MT-RJ Style Adapters and Batteries Included. [81140]
The Miller Continuity Tester provides you with a high intensity, long-lasting green LED light source that transmits light instantly and accurately down the fiber.
Compatible with both single mode and multimode fiber, it can achieve a test distance of up to 2km in multimode testing. (Testing distance may vary depending upon fiber characteristics)
The CCT 2001 tests almost all types of connectors including ST, FC, SC, LC, MT-RJ, or SMA connectors.
It is provided to you complete with one each 1.25mm, 2.5mm, and MT-RJ style adapters, and three each LR44 or PX76A batteries, a key ring and instructions. Adapters are interchangeable and the lamp is replaceable.
Operation is simple. Just select the appropiate adapter and screw it into the head of the tester. Turn the tester on by rotating the adapter in a counter-clockwise direction 90 degrees. Gently insert the ferrule of the connector into the adapter. The green light then determines the status of the fiber.
Compatible with both single mode and multimode fiber, it can achieve a test distance of up to 2km in multimode testing. (Testing distance may vary depending upon fiber characteristics)
The CCT 2001 tests almost all types of connectors including ST, FC, SC, LC, MT-RJ, or SMA connectors.
It is provided to you complete with one each 1.25mm, 2.5mm, and MT-RJ style adapters, and three each LR44 or PX76A batteries, a key ring and instructions. Adapters are interchangeable and the lamp is replaceable.
Operation is simple. Just select the appropiate adapter and screw it into the head of the tester. Turn the tester on by rotating the adapter in a counter-clockwise direction 90 degrees. Gently insert the ferrule of the connector into the adapter. The green light then determines the status of the fiber.
