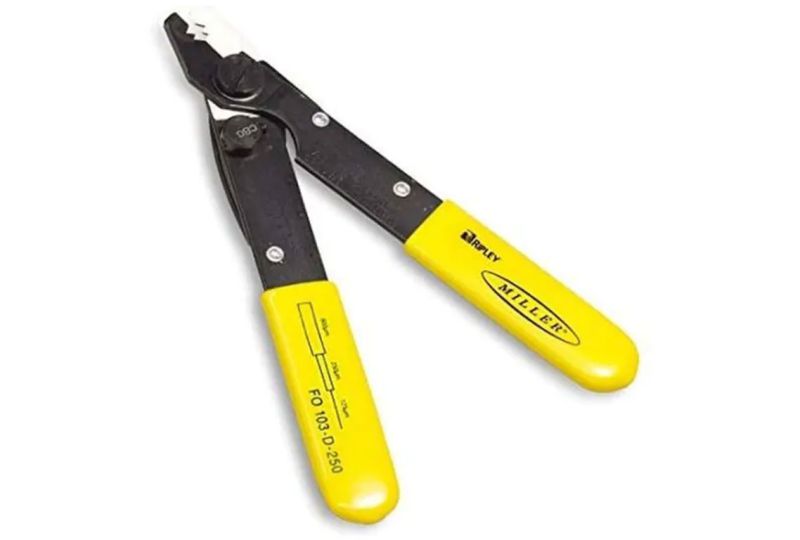

Ripley® Miller Two-Hole Fiber Stripper for 250/900µm Buffer & 125/250µm Coating

The Ripley^® Miller FO 103-D-250 Two-Hole Fiber Optic Stripper is designed to strip 900µm (micron) tight buffer coating to expose 250µm buffer coating and strips 250µm buffer coating to expose 125µm bare fiber. Manufactured to precise tolerances, the diameter hole and V-opening in the blade ensure accurate, clean stripping every time without nicks or scratches to the fiber. The pivot pin, spring, and precision handle with stripping reference enhance both functionality and durability.

Operating the tool is simple: Insert the fiber into the tool’s opening. Close the tool squarely around the fiber, then draw it along while applying light thumb pressure, keeping the tool perpendicular. This delivers a consistent, precise strip every time.

Features:

• 1st Hole: Strip 900µm (0.0354") Tight Buffer to expose 250µm (0.0098) Buffer Coating
• 2nd Hole: Strip 250µm (0.0098") Buffer Coating to expose 125µm (0.0049") Bare Fiber
• Precise hole and V-opening for accurate coating removal
• Prevents scratching or nicking of optical fiber
• Compact, factory-set tool requiring no adjustment
• Easy to read stripping diagrams imprinted on handles

Compatible with the following Premises Fiber Cables:

• Interconnect (Simplex and Duplex), Distribution, MDU and MPAC
• Riser / Breakout
• Micro Duct
• Ribbon Fiber Distribution

Compatible with the following Outside Plant (OSP) Fiber Cables:

• Loose Tube, Single or Multi-Jacket All Dielectric (ADSS)
• Loose Tube, Single or Multi-Jacket Armored
• Single Loose Center Tube Armored
• Air-Blown Micro Fiber
• Air-Blown WTC
• High Fiber Count Ribbon (432–6912F)
• FTTH Flat Drop (Fiber-to-the-Home)
• FTTH Flat Drop with Messenger
• FTTH ULW Drop

Specifications:

• Miller Part#: 80675
• Stripping Holes: 2
• Material: Steel
• Grip Type: Ergonomic
• Length: 5.25ʺ (133 mm)
• Weight: 2.72 oz. (77 g)
