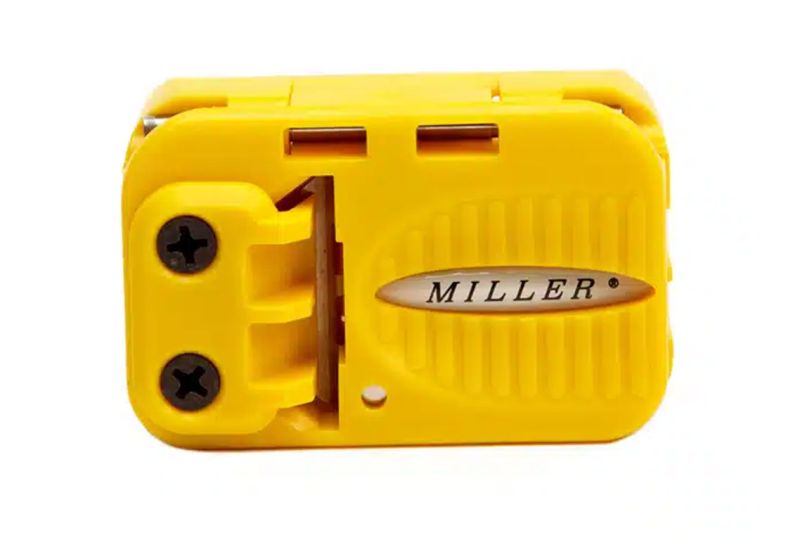

Ripley® Miller MSAT-X Dual Channel Mid-Span Fiber Access Tool (1.9mm-5.0mm)

The Ripley^® Miller MSAT-X Dual-Channel Fiber Access Tool is a versatile fiber shaving tool that allows fiber technicians to gain mid-span access to bare or buffered fibers in a variety of MDU and FTTx jacketed cables. Its patent-pending design, featuring a spring-loaded plate and dual stripping channels, enables engineers to load 1.9–5 mm (0.075″–0.197″) diameter cables into the same cutting blade without needing a sizing gauge.

Features:

• Two blade depths to accommodate a range of cable jacket thicknesses
• Dual cable channels for maximum flexibility
• Patent-pending spring-loaded channel plate design
• Hinged lid for fast, reliable cable placement
• Factory-set blades and cutting depths require no adjustments
• Color-coded deep and shallow cutting channels for easy identification
• Safe, compact, ergonomic design fits comfortably in hand for easy operation

Fiber Optic Cable Compatibility:

• Fiber Cable Access: Mid-Span, End
• Cable Outer Diameter Range: 1.9–5 mm (0.075″–0.197″)
• Compatible with the following Premises Fiber Cables:
  • Interconnect (Simplex and Duplex), Distribution, MDU and MPAC
  • Riser / Breakout
  • Micro Duct

• Compatible with the following Outside Plant (OSP) Fiber Cables:
  • Loose Tube, Single or Multi-Jacket All Dielectric (ADSS)
  • Loose Tube, Single or Multi-Jacket Armored
  • Single Loose Center Tube Armored

Specifications:

• Miller Part #: MB10-7000
• Dimensions: 2.25″ × 1.5″ × 1.125″ (57.2 × 38.1 × 28.6 mm)
• Weight: 1.8 oz (51 g)
